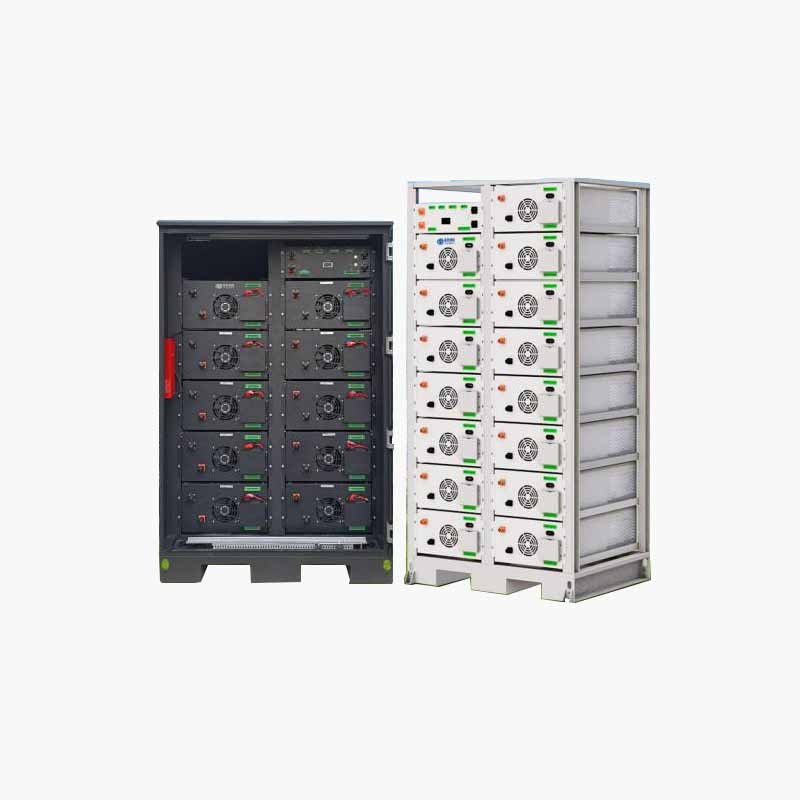

Linka All-in-one C&I BESS 143kWh/160kWh、172kWh/192kWh、200kWh/224kWh、215kWh/241kWh LiFePO4 Battery

  • Supports series connection
  • High safety and reliability
  • Two- or three-tier architecture
  • Host integration of high-voltage modules

Description

Product Description

  • All-In-One Commercial & Industrial BESS,High-Capacity Battery Energy Storage System For C&I Applications
  • Integrated BESS Battery Factory for Scalable Commercial & Industrial Energy Storage
  • The BESS battery energy storage system is designed for commercial and industrial users requiring higher energy capacity, longer discharge duration, and enhanced peak-shaving performance.
  • Built on a mature industrial-grade inverter platform and integrated with Linka’s self-developed high-voltage LiFePO₄ battery system, this all-in-one BESS delivers stable, safe, and scalable energy storage for grid-connected, off-grid, and hybrid energy projects.



Application

  • This solution is well suited for battery energy storage systems (BESS) deployed in factories, industrial parks, data centers, and renewable energy EPC projects.

Parameter

Battery Model 143kWh/160kWh 172kWh/192kWh 200kWh/224kWh 215kWh/241kWh
Nominal Voltage 512V 614V 716V 768V
Rated Capacity 280Ah/314Ah 280Ah/314Ah 280Ah/314Ah 280Ah/314Ah
End-of-Charge Voltage 576V 691.2V 806.4V 864V
End-of-Discharge Voltage 448V 537.6V 627.2V 672V
Max. Charge Current 140A 140A 140A 140A
Max. Discharge Current 200A 200A 200A 200A
Communication RS485/CAN RS486/CAN RS487/CAN RS488/CAN
Size (mm) 1000*800*1620mm 1000*800*1850mm 1000*800*2000mm 1000*800*2050mm
Weight (kg) 1500kg (about) 1850kg (about) 2000kg (about) 2085kg (about)
