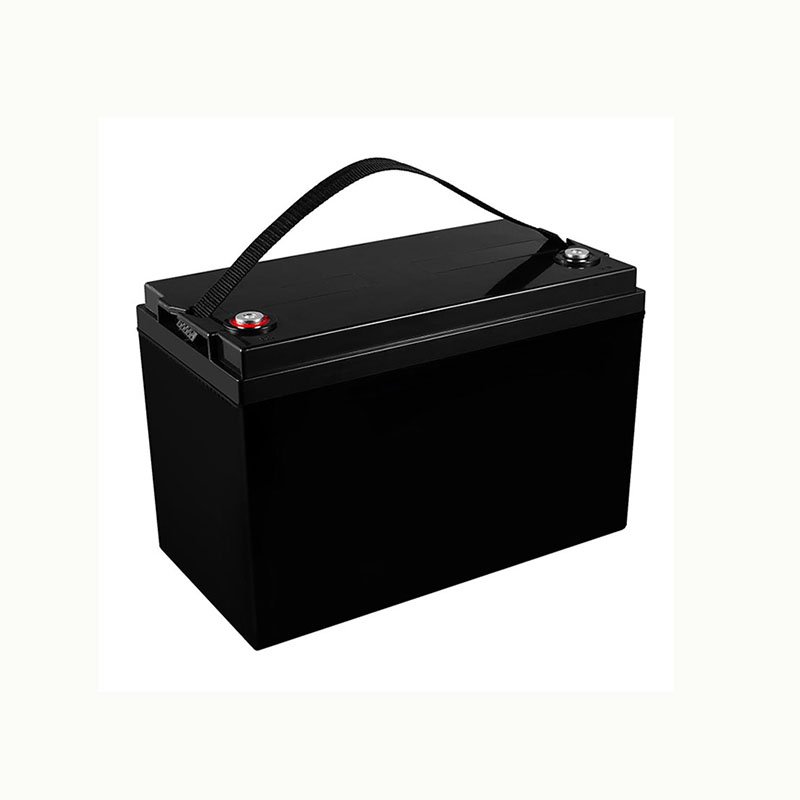

Linka 12V 100AH /120AH /150AH LiFePO4 Battery
-
High capacity
-
4000 cycles
-
Intelligent BMS
-
IP65 protection |
Description
Product Description
- Linka 12V LiFePO₄ Battery Pack: Intelligent Power Built for Reliability
Engineered for demanding applications where safety and longevity are non-negotiable, the Linka 12V lithium iron phosphate (LiFePO₄) battery pack sets a new benchmark in high-performance energy storage. Built with inherently stable LiFePO₄ cells, it eliminates the risk of thermal runaway at the chemical level. Its ruggedized structural design delivers exceptional resistance to shock and vibration—ensuring rock-solid reliability even on rough roads or open seas. - Thanks to the intrinsic stability of LiFePO₄ chemistry, the Linka battery offers an exceptionally long cycle life-typically exceeding 4,000 cycles at 80% depth of discharge—far outlasting conventional lead-acid or standard lithium batteries. A flat discharge voltage curve guarantees consistent power output from full charge to near depletion, enabling your equipment to operate at peak performance throughout. High-rate charge and discharge capabilities further ensure seamless handling of high-power loads and rapid recharging when needed.
- An integrated intelligent Battery Management System (BMS) provides real-time monitoring and comprehensive protection against overcharging, over-discharging, short circuits, and extreme temperatures, while also performing cell balancing to maximize overall lifespan. The stable voltage output even simplifies external power circuitry, reducing system complexity and cost.
Application
- The Linka 12V battery pack is ideal for a wide range of applications—including RV and marine house power, solar and off-grid energy storage, premium UPS backup systems, and specialty or converted vehicle power solutions. With safety as its foundation and longevity as its promise,
- Linka delivers dependable power you can count on—every time.
- Linka Power — Enduring Energy. Engineered for Safety.
Parameter
| Model | LK 12V-100AH | LK 12V-120AH | LK 12V-150AH |
| Cell Technology | LiFePO4 | ||
| Products type | LiFePO4 | LiFePO4 | LiFePO4 |
| Battery Pack Capacity (Vh) | 1280 | 1636 | 1920 |
| Battery pack Voltage (Vdc) | 12.8 | 12.8 | 12.8 |
| Battery pack Capacity (AH) | 100 | 120 | 150 |
| Battery pack Cell Quantity in Series (pcs) | 4S | 4S | 4S |
| Battery pack Charge Voltage (Vdc) | 14.6 | 14.6 | 14.6 |
| Battery System Charge Current (Standard) | 10A | 10A | 10A |
| Battery pack Charge Current (Normal) | 20A | 20A | 20A |
| Battery pack Charge Current (Max.) | 50A | 50A | 50A |
| Battery pack Discharge lower-Voltage (Vdc) | 10V | 10V | 10V |
| Battery System Discharge Current (Standard) | 20A | 20A | 20A |
| Battery pack Discharge Current (Normal) | 100A | 120A | 150A |
| Battery pack Discharge Current (Max.) | 300A | 300A | 350A |
| Efficiency | 98% | ||
| Depth of Discharge | 100% | ||
| Communication | Option of CANBUS OR RS485, SMbus | ||
| Protection Class | IP65 | ||
| Operation Life | 10+ years | ||
| Operation Cycle Life | Over 4000 times | ||
| Operation Temperature | 0-50℃ | ||
| Storage Temperature | minus 20 ~ 60 ℃ | ||
| Dimension (L*W*H, mm) | 329*172*214 | ||
| Weight | 10.5kg | 12.8kg | 16kg |
